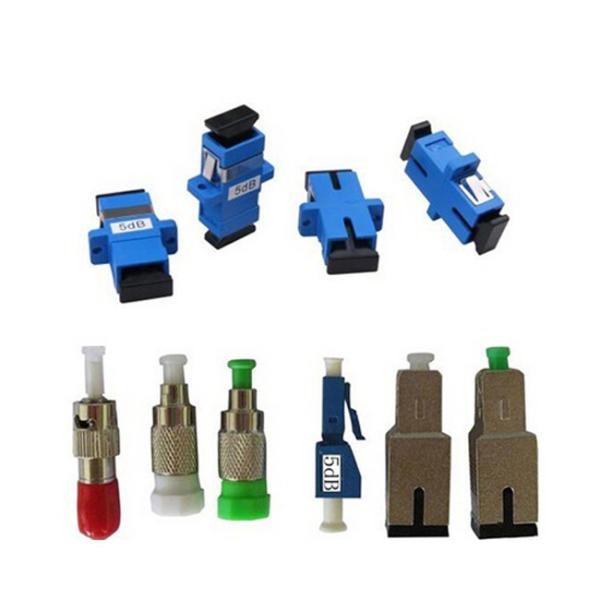

Bellcore Standare Fiber Optic Attenuator 5dB / 10dB Male To Female Type Easy Operate

Name: Bellcore Standare Fiber Optic Attenuator 5dB 10dB Male To Female Type Easy Operate
Brand: HG or OEM
Price: 1 USD

Brand Name : HG or OEM

Model Number : SC Fiber Attenuator 10dB 5dB

Certification : CE, ROHS

Place of Origin : China

MOQ : 100pcs

Payment Terms : L/C, Western Union, MoneyGram, T/T

Delivery Time : 3-5 days

Packaging Details : 25pcs Per Plastic Plant

name : Singlemode Fiber Optic SC Attenuator 5dB 10dB Male To Female Type

Warranty : 10 Years

Color : Green, blue,

Type : Single mode/ Multi-mode

Sleeve material : Ceramic

Housing material : ABS

Contact Now

Singlemode Fiber Optic SC Attenuator 5dB 10dB Male To Female Type

Specifications
1. Stable performance;
2. Low attenuation error,high return loss;
3. Bellcore standare
4, easy to operate

Features
1) High precision.
2) Good stability.
3) Small size and bulk.
4) Easy to operate.
5) Based on IEC/Telcordia Bell GR-326-Core Tested.
6) Optional adapter: SM/MM, Simplex/Duplex
7) 100% Optic test(Insertion loss ≤0.20dB)

Application
Fiber optic communication systems.
Fiber optic CATV
Fiber optic test

Specification:

Attenuation value	1, 3, 5, 10, 15, 20,25 dB
Attenuation precision	<5dB±0.3dB <10dB±1dB >10dB±10%
Return loss	PC>45dB APC>60dB
Operation wavelength	1310nm and 1550nm(SM)
Polarization loss	<0.1dB
Operation temperature	-40℃ ~ +75℃
Storage temperature	-40℃ ~ +85℃
Temperature(Unencapsulation)	95%RH Apply Telecordia standard(GR-910-CORE)

Bellcore Standare Fiber Optic Attenuator 5dB / 10dB Male To Female Type Easy Operate
